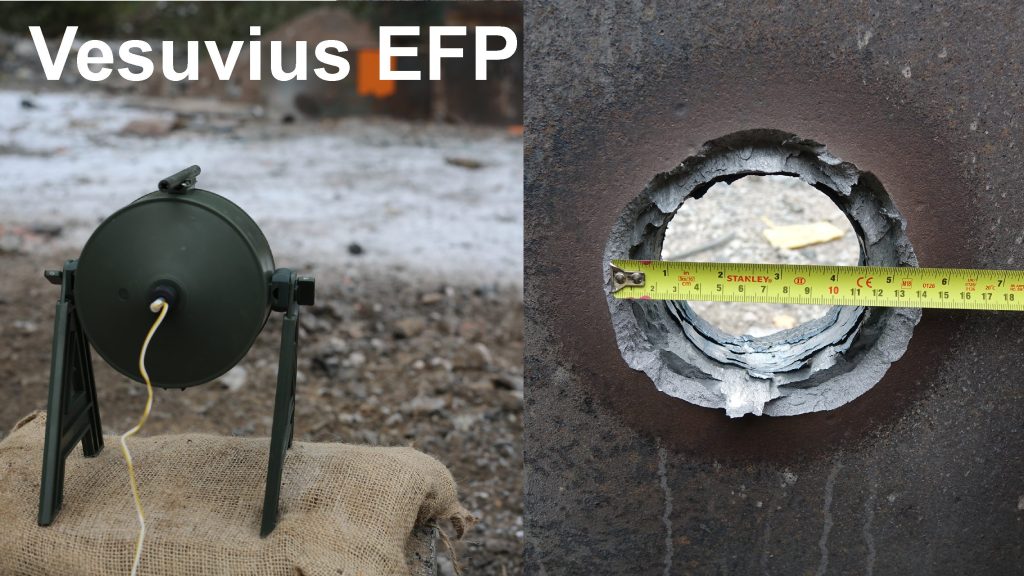

Vesuvius EFP before and after firing

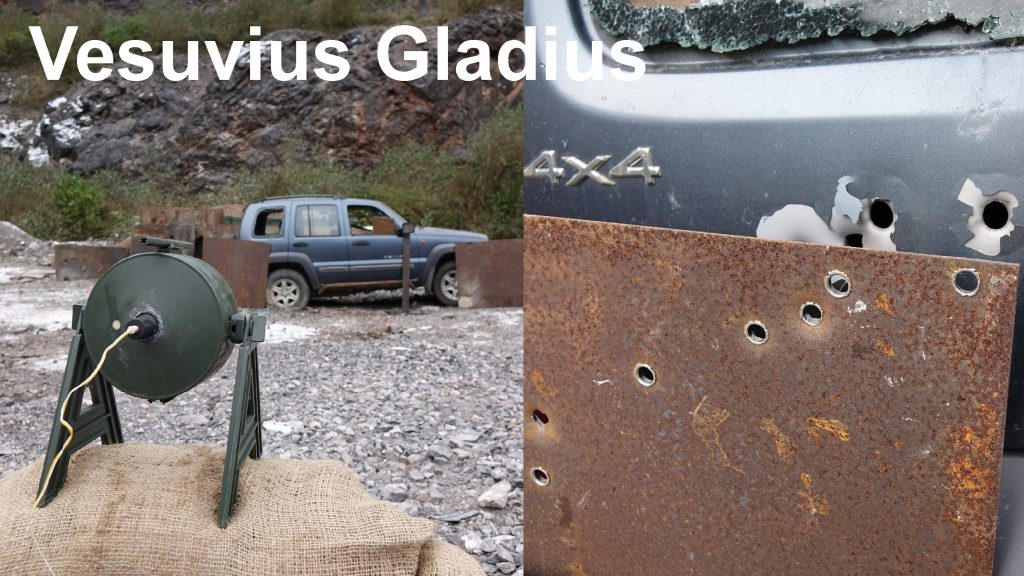

Vesuvius Gladius before and after firing

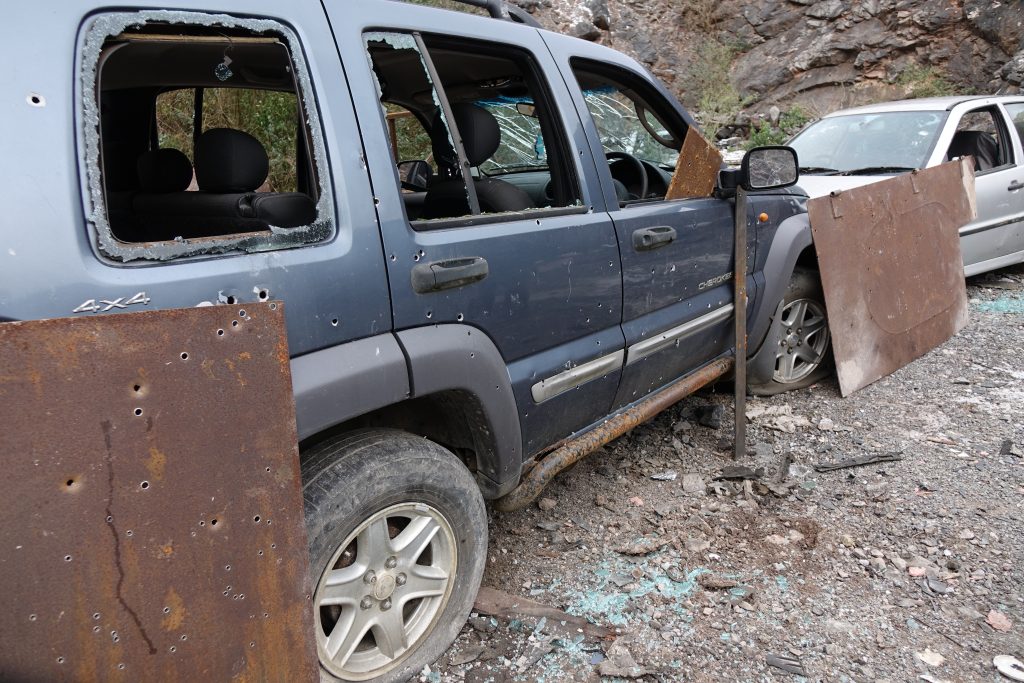

Targets after attack from Vesuvius Gladius
Gladius
An operator deploying a Vesuvius charge
Vesuvius EFP before and after firing
Vesuvius Gladius before and after firing
Targets after attack from Vesuvius Gladius
Gladius

Vesuvius is a highly versatile, user-filled charge container system for anti-armour, demolition, and EOD applications. It offers two projectile options:

    • Explosively Formed Projectile (EFP)
    • Gladius Fragmenting Projectile
Vesuvius EFP™ uses the Misnay-Schardin effect to explosively form a highly effective penetrator. It can penetrate 60mm mild steel from a 6-50 metre stand-off. This EFP is the larger and more capable version of the Krakatoa SB EFP, providing a highly accurate, powerful stand-off anti-armour / anti-structure effect. The Vesuvius Gladius projectile can destroy thin-skinned targets such as aircraft, helicopters, or factory/IT equipment. It is filled with 348 steel projectiles and designed to produce a linear pattern, hitting the target from a 2 – 50 metres stand-off. The low fragmentation-producing plastic body incorporates Picatinny Rails to enable users to integrate sighting and stand systems.

High power, high accuracy

Low fragmentation producing body

EFP and Gladius fragmenting projectile options

Stand-off anti-armour / anti-structure capability

Enquire now

Videos

Watch videos

Deployment to Target

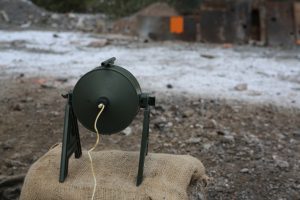

A Vesuvius charge deployed with triangle legs



Due to the mass of plastic explosive required, it is recommended that Vesuvius be mounted for greater accuracy and stability.

Stand options are available to best suit the various terrains and unit procedures.

Projectiles and Components

The kit includes a projectile. Please get in touch with us directly to discuss the tool’s capabilities.

Also included in the kit are loading tools and options for different stands.

Vesuvius EFP

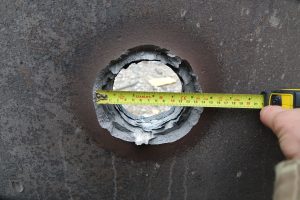

A Vesuvius charge deployed with triangle legsTarget after attack by Vesuvius EFP

Veusvius Gladius

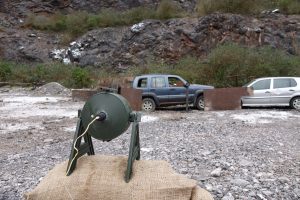

Vesuvius Gladius aimed at a vehicle targetTargets after attack from Vesuvius Gladius





Specifications

EFP Gladius
Weight empty 1kg 1.9kg
Weight full 2.5kg 2.8kg
Height 170mm 170mm
NEQ 1.5kg 940g
Part No. VV2903 VV2904
NSN 1385-99-477-6954 1385-99-959-6576
